The Nrf2 pathway is one of the important genomic regulators protecting the cell from environmental stressors by managing the antioxidant and detoxification processes within most cells.1 Like most complex genomic regulatory systems, Nrf2 (nuclear factor erythroid 2-related factor 2) is sequestered in the cytoplasm until it is able to translocate into the nucleus, where it forms a heterodimer with MAF (another transcription factor) and binds to the promoter region of genes containing an antioxidant response element (ARE) sequence. Nrf2 regulates important genes such as heme-oxygenase 1(HO-1), glutathione S-transferase (GST), glutathione reductase (GR), glutamate-cysteine ligase subunits (GCLc and GCLm), NAD(P)H quinone oxidoreductase-1 (NQO1), and thioredoxins (TrxR1), among others.2,3 Nrf2 stays sequestered in the cytoplasm by its interaction with the Keap1 protein complex (Keap1-Kelch-like ECH-associated protein 1). When an oxidative stressor or electrophile interacts with the Keap1-Nrf2 complex, it allows for the release and subsequent nuclear accumulation of Nrf2 through a complex process of ubiquitination-inhibition, thus triggering an anti-stress response by the cell.4 In some circumstances, Nrf2-activation can mitigate some of the effects of the NF-κB inflammatory signaling pathway.5,6

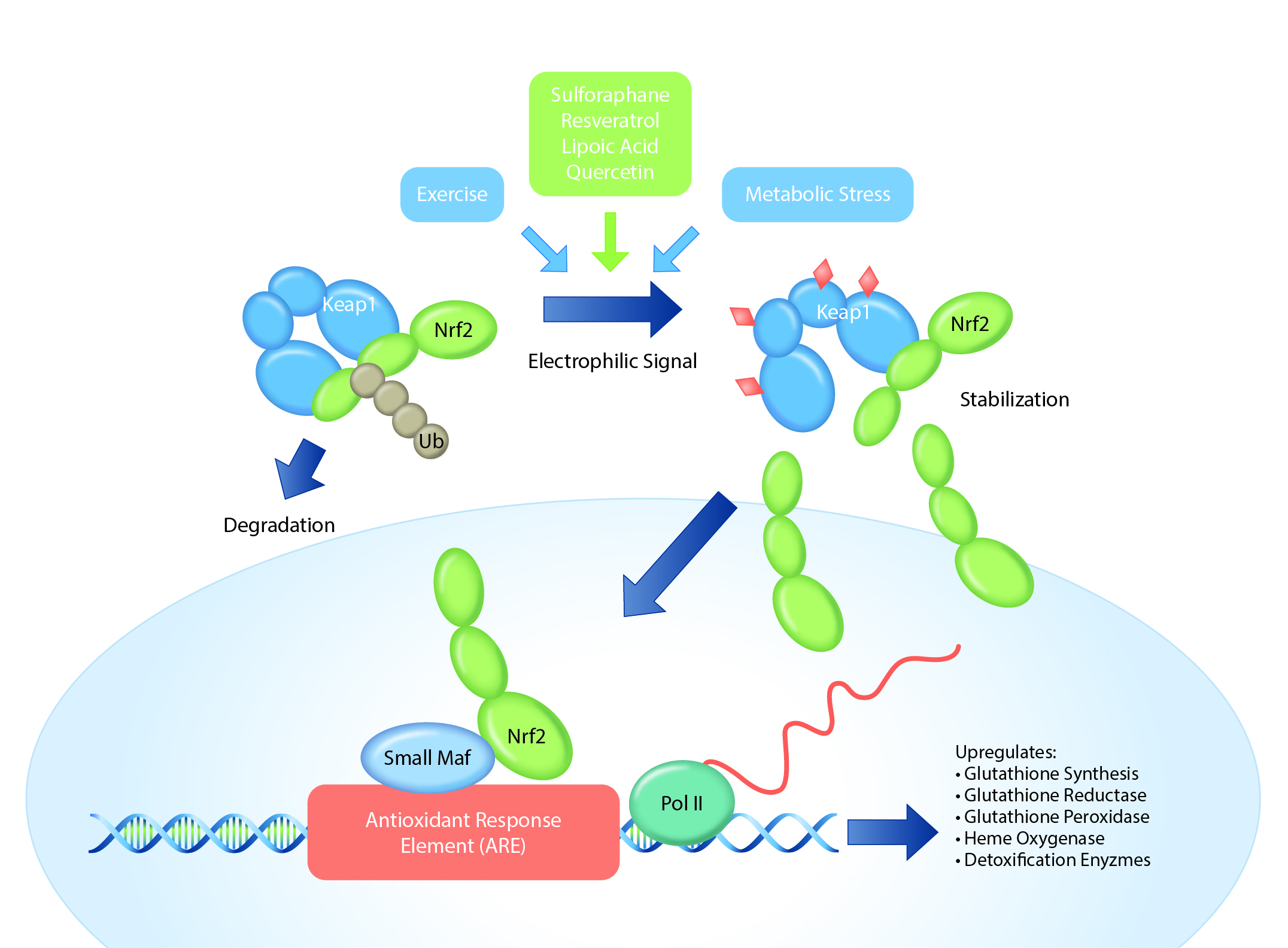

The Keap1–Nrf2 system. Under normal conditions, Nrf2 is constantly ubiquitinated through Keap1 and degraded in the proteasome. When exposed to electrophiles (i.e., certain antioxidants) or oxidative stress, Keap1 is inactivated. Stabilized Nrf2 accumulates in the nucleus and activates transcription of many genes that produce antioxidant proteins. Ub, ubiquitin. Image adapted from: Mitsuishi Y, Motohashi H, Yamamoto M. The Keap1-Nrf2 system in cancers: stress response and anabolic metabolism. Front Oncol. 2012 Dec 26;2:200.




There has been a wealth of research looking at agents (naturally occurring and synthetic) that can upregulate this global antioxidant and detoxification system. Sulforaphane (a glucosinolate compound found in some cruciferous vegetables like broccoli) is one of the most commonly cited natural Nrf2 activators, though there are many others shown to have similar effects on Nrf2-induced enzymatic activities and metabolites. There are well over 100 different nutrients, phytonutrients, and related dietary supplement ingredients thought to function as antioxidants or detoxification enhancing agents, at least in part, because of their ability to up-regulate Nrf2 activation. A small portion of these have been confirmed to alter such responses when consumed at reasonable oral doses in human or animals and are listed below:7

  • Cruciferous glucosinolates (broccoli, Brussels sprouts, etc.)8,9,10
  • Sulforaphane (concentrated)11,12
  • Curcuminoids (turmeric)13,14
  • Quercetin15,16
  • Resveratrol17,18
  • Phenethyl isothiocyanate (PEITC, from watercress)19,20
  • Diallyl sulfide (garlic)21,22
  • Lipoic acid23,24
  • N-acetyl cysteine (NAC)25,26
The list of natural compounds shown to modulate Nrf2 pathways or ARE-containing genes is too numerous to list in this text, though common ingredients for which the reader might be familiar include all those listed above and also baicalein (Scutellaria baicalensis), catechins (tea, cocoa), genistein (soy), carnosol and carnosic acid (Rosmarinus officinalis), andrographolide (Andrographis paniculata), ginsenoside Rb1 (Panax ginseng), schisandrin B (Schisandra chinensis), quercetin and related flavonoids, indole-3-carbinol (I3C) and diindolylmethane (DIM), hydroxytyrosol (Olea europaea - olive), Pterostilbene, Xanthohumol (Humulus lupulus), berberine, [6]-gingerol (Zingiber officinale), vitamin D, and even exercise (though the Nrf2-activation response decreases with aging).26,27,28,29

Dose recommendations for these ingredients for specific antioxidant outcomes is not possible, though it is likely there is a dose-response and even a dose at which some inhibition of Nrf2 activation occurs (i.e., biphasic response). This information strengthens our recommendation to encounter a wide range of phytonutrients in the diet and clinicians should consider recommending these phytonutrients (low-dose, but persistent intake) to combat the constant low-dose, but persistent damage generated by ROS and RNS.



Content from this blog has been adapted from Supplementing Dietary Nutrients: A Guide for Healthcare Professionals.







Thomas G. Guilliams, PhD (Tom) earned his doctorate in molecular immunology from the Medical College of Wisconsin in Milwaukee. For the past two decades, he has spent his time investigating the mechanisms and actions of lifestyle and nutrient-based therapies, and is an expert in the therapeutic uses of dietary supplements. Tom serves as an adjunct assistant professor at the University of Wisconsin School of Pharmacy and was the VP of Science for Ortho Molecular Products for 24 years (he now serves them as a consultant). Since 2014 he has been writing a series of teaching manuals (Road Maps) that outline and evaluate the evidence for the principles and protocols that are fundamental to the functional and integrative medical community.  He is the founder and director of the Point Institute, an independent research and publishing organization that facilitates the distribution of his many publications. A frequent guest-speaker, Dr. Guilliams provides training to a variety of health care disciplines in the use of lifestyle and natural medicines. He lives in the woods outside of Stevens Point, Wisconsin with his wife and children.





References
1. Suzuki T, Yamamoto M. Molecular basis of the Keap1-Nrf2 system. Free Radic Biol Med. 2015 Nov;88(Pt B):93-100.
2.  Buendia I, Michalska P1, Navarro E, et al. Nrf2-ARE pathway: An emerging target against oxidative stress and neuroinflammation in neurodegenerative diseases. Pharmacol Ther. 2016 Jan;157:84-104.
3.  Lu SC. Glutathione synthesis. Biochim Biophys Acta. 2013 May;1830(5):3143-53.
4. Huang Y, Li W1, Su ZY, Kong AN. The complexity of the Nrf2 pathway: beyond the antioxidant response. J Nutr Biochem. 2015 Dec;26(12):1401-13.
5. Li W, Khor TO, Xu C, Shen G, Jeong WS, Yu S, Kong AN. Activation of Nrf2-antioxidant signaling attenuates NFkappaB-inflammatory response and elicits apoptosis. Biochem Pharmacol. 2008 Dec 1;76(11):1485-9.
6. Qin S, Hou DX. Multiple regulations of Keap1/Nrf2 system by dietary phytochemicals. Mol Nutr Food Res. 2016 Aug;60(8):1731-55.
7. Dinkova-Kostova AT, Kostov RV. Glucosinolates and isothiocyanates in health and disease. Trends Mol Med. 2012 Jun;18(6):337-47.
8. Yang L, Palliyaguru DL, Kensler TW. Frugal chemoprevention: targeting Nrf2 with foods rich in sulforaphane. Semin Oncol. 2016 Feb;43(1):146-53.
9. Gasper AV, Al-Janobi A, Smith JA, et al. Glutathione S-transferase M1 polymorphism and metabolism of sulforaphane from standard and high-glucosinolate broccoli. Am J Clin Nutr. 2005 Dec;82(6):1283-91.
10. Kensler TW, Egner PA, Agyeman AS, et al. Keap1-nrf2 signaling: a target for cancer prevention by sulforaphane. Top Curr Chem. 2013;329:163-77.
11. Houghton CA, Fassett RG, Coombes JS. Sulforaphane and Other Nutrigenomic Nrf2 Activators: Can the Clinician's Expectation Be Matched by the Reality? Oxid Med Cell Longev. 2016;2016:7857186.
12.  Shehzad A, Ha T, Subhan F, Lee YS. New mechanisms and the anti-inflammatory role of curcumin in obesity and obesity-related metabolic diseases. Eur J Nutr. 2011 Apr;50(3):151-61.
13.  Shoskes D, Lapierre C, Cruz-Correa M, et al. Beneficial effects of the bioflavonoids curcumin and quercetin on early function in cadaveric renal transplantation: a randomized placebo controlled trial. Transplantation. 2005 Dec 15;80(11):1556-9.
14.  Scapagnini G, Vasto S, Abraham NG, Caruso C, Zella D, Fabio G. Modulation of Nrf2/ARE pathway by food polyphenols: a nutritional neuroprotective strategy for cognitive and neurodegenerative disorders. Mol Neurobiol. 2011 Oct;44(2):192-201.
15.  Li C, Zhang WJ, Frei B. Quercetin inhibits LPS-induced adhesion molecule expression and oxidant production in human aortic endothelial cells by p38-mediated Nrf2 activation and antioxidant enzyme induction. Redox Biol. 2016 Jun 28;9:104-113.
16. Chow HH, Garland LL, Hsu CH, et al.  Resveratrol modulates drug- and carcinogen-metabolizing enzymes in a healthy volunteer study. Cancer Prev Res (Phila). 2010 Sep;3(9):1168-75.
17. Kumar A1, Negi G, Sharma SS. Neuroprotection by resveratrol in diabetic neuropathy: concepts & mechanisms. Curr Med Chem. 2013;20(36):4640-5.
18. Fuentes F, Paredes-Gonzalez X, Kong AT. Dietary Glucosinolates Sulforaphane, Phenethyl Isothiocyanate, Indole-3-Carbinol/3,3'-Diindolylmethane: Anti-Oxidative Stress/Inflammation, Nrf2, Epigenetics/Epigenomics and In Vivo Cancer Chemopreventive Efficacy. Curr Pharmacol Rep. 2015 May;1(3):179-196.
19. Konsue N, Kirkpatrick J, Kuhnert N, King LJ, Ioannides C. Repeated oral administration modulates the pharmacokinetic behavior of the chemopreventive agent phenethyl isothiocyanate in rats. Mol Nutr Food Res. 2010 Mar;54(3):426-32.
20. Ho CY, Cheng YT, Chau CF, Yen GC. Effect of diallyl sulfide on in vitro and in vivo Nrf2-mediated pulmonic antioxidant enzyme expression via activation ERK/p38 signaling pathway. J Agric Food Chem. 2012 Jan 11;60(1):100-7.
21. Colín-González AL, Santana RA, Silva-Islas CA, et al. The antioxidant mechanisms underlying the aged garlic extract- and S-allylcysteine-induced protection. Oxid Med Cell Longev. 2012;2012:907162.
22. Shay KP, Moreau RF, Smith EJ, et al. Alpha-lipoic acid as a dietary supplement: molecular mechanisms and therapeutic potential. Biochim Biophys Acta. 2009 Oct;1790(10):1149-60.
23. Xia D, Zhai X, Wang H, et al. Alpha lipoic acid inhibits oxidative stress-induced apoptosis by modulating of Nrf2 signalling pathway after traumatic brain injury. J Cell Mol Med. 2019 Jun;23(6):4088-4096.
24. Zhou Y, Wang HD, Zhou XM, et al. N-acetylcysteine amide provides neuroprotection via Nrf2-ARE pathway in a mouse model of traumatic brain injury. Drug Des Devel Ther. 2018 Dec 4;12:4117-4127.
25. Cai Z, Lou Q, Wang F, et al. N-acetylcysteine protects against liver injure induced by carbon tetrachloride via activation of the Nrf2/HO-1 pathway. Int J Clin Exp Pathol. 2015 Jul 1;8(7):8655-62.
26. Nakai K, Fujii H, Kono K, et al. Vitamin D activates the Nrf2-Keap1 antioxidant pathway and ameliorates nephropathy in diabetic rats. Am J Hypertens. 2014 Apr;27(4):586-95.
27. Kumar H, Kim IS, More SV, Kim BW, Choi DK. Natural product-derived pharmacological modulators of Nrf2/ARE pathway for chronic diseases. Nat Prod Rep. 2014 Jan;31(1):109-39.
28. Done AJ, Gage MJ, Nieto NC, Traustadóttir T. Exercise-induced Nrf2-signaling is impaired in aging. Free Radic Biol Med. 2016 Jul;96:130-8.
